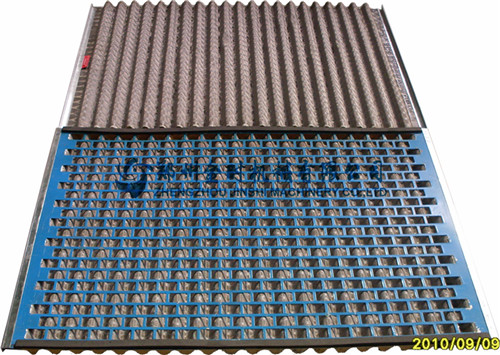

Awave vibration screen has a awave screen surface,installation type can be hook edge or steel frame.the area of the awave screen is up to 125%-150% of the same area plate type screen,and the capacity increases a lot.We can also make creens according to customer requirements.
篩網型號 Screen type | 目數范圍 Mesh No. | 尺寸 Dimensions | 適配振動篩 Shale shaker model | 重量（kg） Weight |
JSB-1(PMD) | 80-210 | 635×1253mm | BRANDT,BL-50 | 17.5 |
JSB-2(PMD) | 80-210 | 697×1050mm | DERRICR | 7.5 |
JSB-3(PMD) | 80-210 | 697×1053mm | DERRICR,FLC2000 | 5.8 |
JSB-4(PMD) | 80-210 | 915×1150mm | BRANDT,LCM-ZD | 10 |
