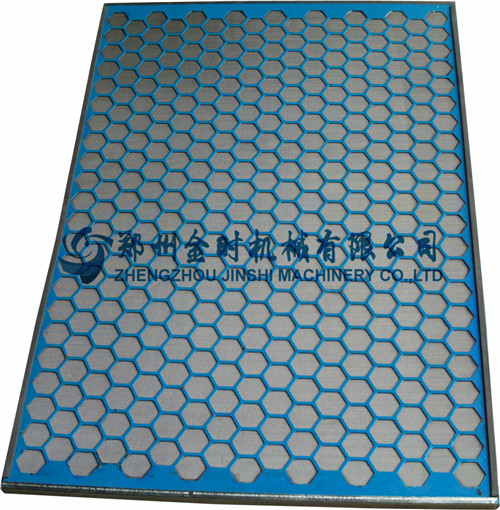

Plate type vibration screen is one of the most frequent vibration screen,and be used in all kind of drilling operation.The screen is made of tow or three stainless steel meshes and metal backing with holes.We have a wealth of experience and mature technology in production,can also make creens according to customer requirements.
篩網型號 Screen type | 目數范圍 Mesh No. | 尺寸 Dimensions | 適配振動篩 Shale shaker model | 重量（kg） Weight |
JSP-1 | 16-325 | 903×1155mm | SWACO,BEM-3 | 5.6 |
JSP-2 | 16-325 | 1212×1141mm | SWACO,ALS-11 | 9 |
JSP-3（PWP） | 16-325 | 697×1050mm | DERRICR | 6 |
JSP-4（PWP） | 16-325 | 697×1053mm | DERRICK | 4.2 |
JSP-5 | 16-325 | 697×846mm | DERRICK,FLC313M | 4 |
JSP-6（PWP） | 16-325 | 915×1150mm | BRANDT LCM-20 | 8.6 |
JSP-7（PWP） | 16-325 | 720×1220mm | KEMTRON | 5.6 |
JSP-8（PWP） | 16-250 | 700×1165mm | 華油一機廠 S250 | 4.6 |
JSP-9 | 16-250 | 1186×1280mm | 華油一機廠 2X60 | 9.2 |
