1. Usage and Application Range
JSLH series Jet Mixing Device is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid.if put the drilling fluid materials and chemical addition agents into the mud tank directly,the materials and agents may precipitate or conglobate,with the decive,the materials and agents can be mixed well.
2. Structure and Features

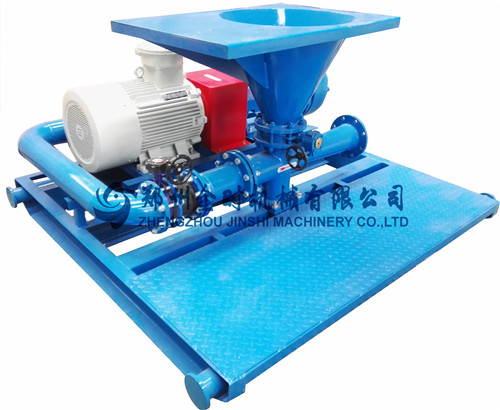

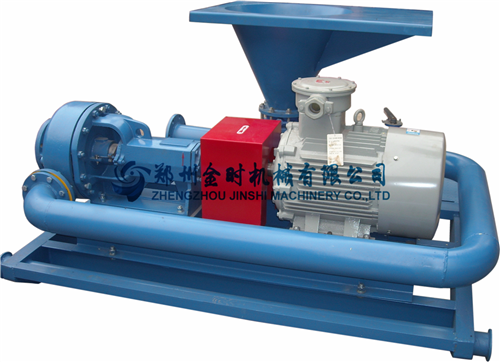

The jet mixing device is comprised of one sand pump,one jet mixer(or several pumps and mixers) ,valves and manifold.convenient transporation,installation and service,etc.
We can offer various compoud type according to the customers’ requirements.
3. Parameters
Model | JSLH150-55 | JSLH150-45 | JSLH150-37 |
Mating sand pump | JSB8×6×14 | JSB8×6×11 | JSB6×5×11 |
Motor power | 55kW | 45kW | 37kW |
Discharge capacity | 240m3/h | 220m3/h | 200m3/h |
Working pressure | 0.25~0.6MPa | 0.25~0.6MPa | 0.25~0.6MPa |
Inlet diameter | 8″ | 8″ | 6″ |
Outlet diameter | 6″ | 6″ | 6″ |
Mixing speed | ≤100kg/min | ≤80kg/min | ≤60kg/min |
Weight | 1800kg | 1400kg | 1200kg |
Overall dimensions | 2200×2200×1200mm | 2200×2200×1200mm | 2200×2200×1200mm |
